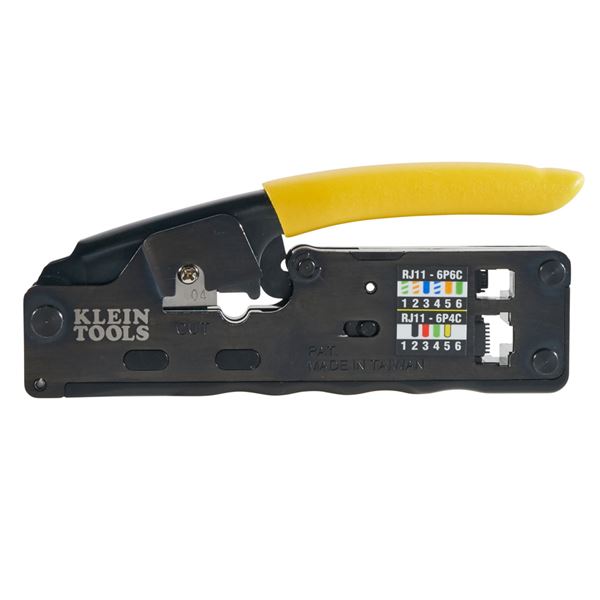

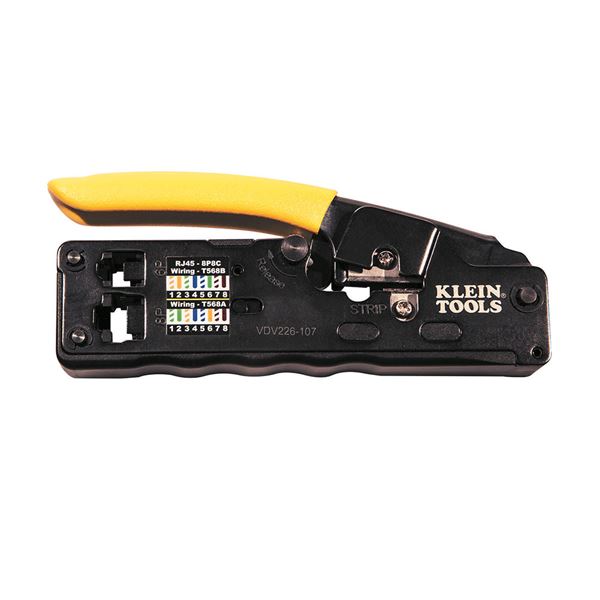

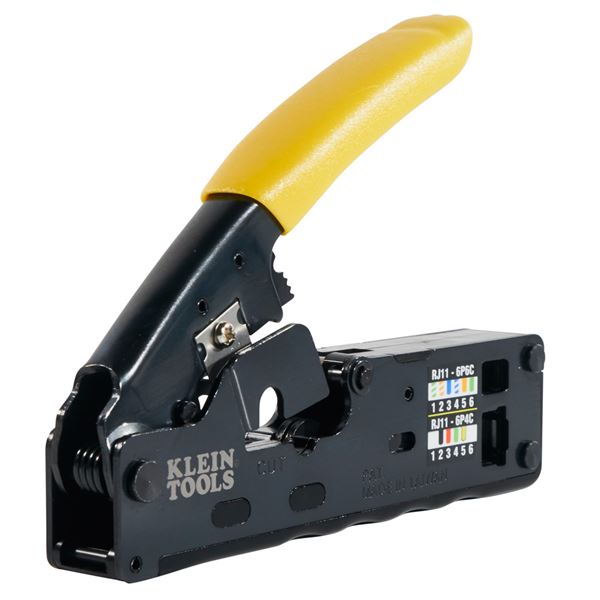

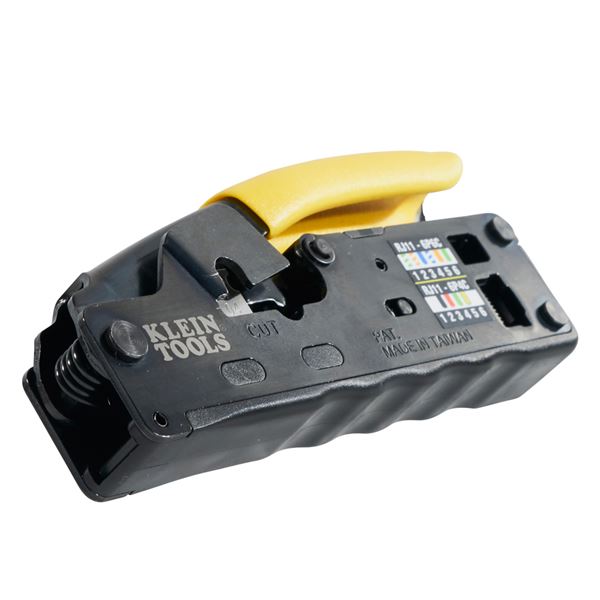

"The Compact Ratcheting Modular Crimper provides fast, reliable connector termination for voice and data applications. This all-in-one tool, cuts, strips, and crimps data and voice cables. Its direct lateral crimp action provides more even, precise contact termination across all pins than ordinary indirect crimp tools. A compact, ergonomic design provides easy usage and storage."
Unit of Measure

Specifications

Brand

 N/A Klein®

Type

 N/A Compact Ratcheting Modular Crimper

UPC Code

 N/A 92644582097

UNSPSC code

 N/A 43222814

Style

 N/A Compact

Handle Color

 N/A Yellow/Black

Insulated

 N/A No

Position/Pair/Conductors

 N/A 6-Position, 2 Pair/4-Conductor; 6-Position, 3-Pair/6-Conductor; 8-Position, 4-Pair/8-Conductor

Crimps

 N/A RJ11, RJ12 and RJ45

Cuts and Strips

 N/A STP/UTP Data Cable Flat Satin Phone Cable 28 - 22 AWG (0.08 - 0.34 mm²)

Weight

 N/A 0.32 kg0.71 lb

Dimensions

Overall Length

 N/A 5-1/4 in133.4 mm

Application

Application

 N/A Round STP/UTP Data Cable Flat-Satin Phone Cable 28 - 22 AWG (0.08 - 0.34 mm)

Features

Features

 N/A
  • "All inclusive tool cuts, strips and crimps data and voice cables."
  • "Cuts and strips CAT6, CAT5e, CAT3 and flat-satin voice cables."
  • "Crimps 6 and 8 position modular connectors (RJ11, RJ12, RJ45)"
  • "Compact, ergonomic design for natural, single-hand operation."
  • About 40% smaller than other crimpers for easy storage.
  • Heavy-duty ratchet ensures complete termination.
  • "Direct lateral crimp action provides more even, precise contact termination across all pins."

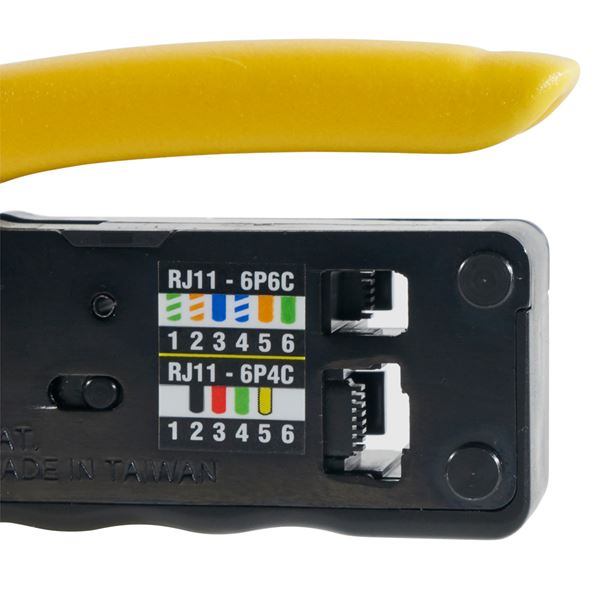

  • Quick reference connector wiring diagrams provided on the tool and downloadable to your mobile device.
  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Never use on or near live electrical circuits.
