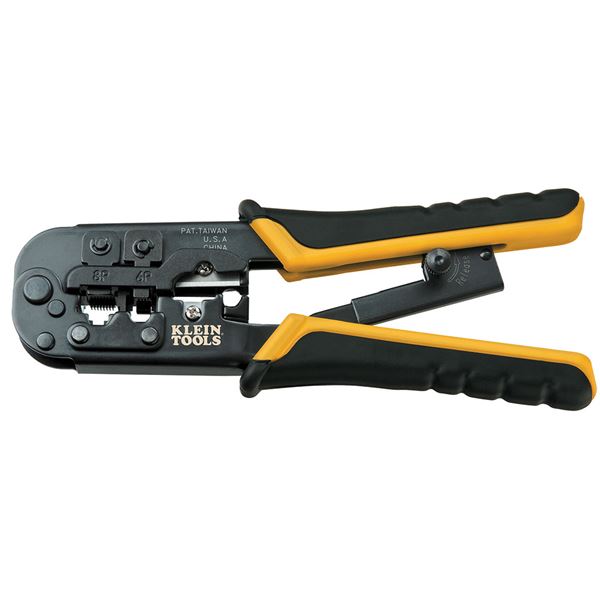

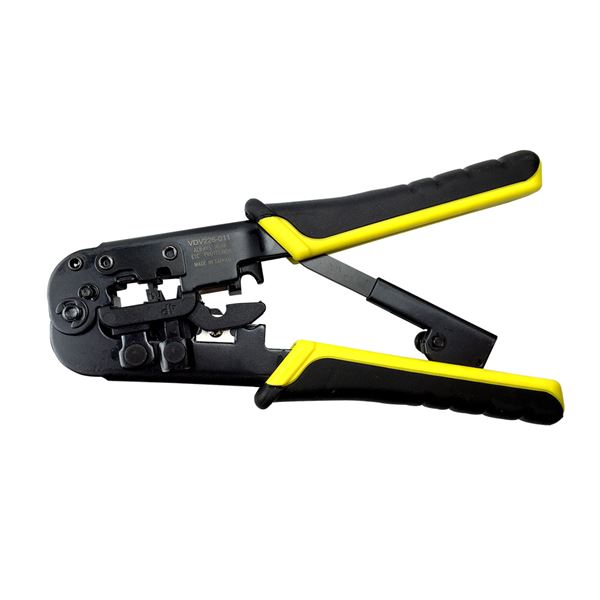

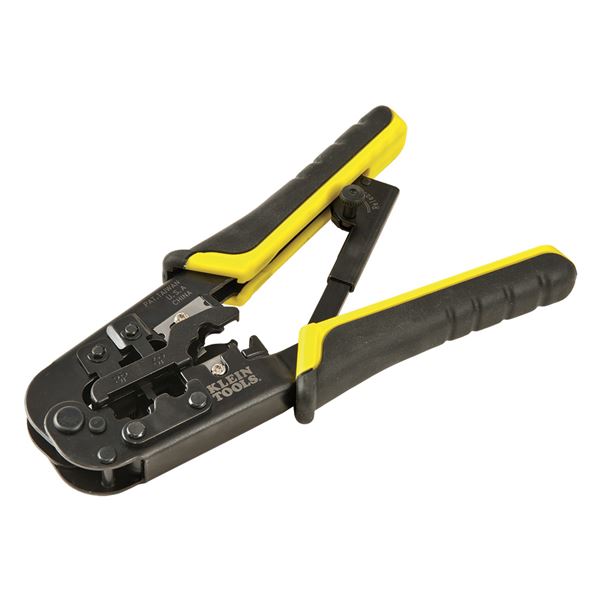

"The Klein® VDV226-011-SEN Ratcheting Modular Crimper/Stripper is durably made from steel and finished in black oxide for high performance. It helps provide fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables); Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein® Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems."
Unit of Measure

Specifications

Brand

 N/A Klein®

Type

 N/A Ratcheting Modular Crimper

UPC Code

 N/A 92644580147

UNSPSC code

 N/A 43222814

Style

 N/A Ratchet

Material

 N/A Steel

Handle Type

 N/A Non-Slip Comfort Grip

Handle Color

 N/A Yellow/Black

Insulated

 N/A No

Position/Pair/Conductors

 N/A 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor

Crimps

 N/A RJ11, RJ12, RJ22, and RJ45

Cuts and Strips

 N/A STP/UTP, Flat Satin Phone Cable, and 22-28 AWG (0.08 - 0.34 mm²)

Weight

 N/A 0.05 kg0.11 lb

Dimensions

Overall Length

 N/A 7-1/2 in190.5 mm

Application

Application

 N/A Round STP/UTP, Flat Satin Phone Cable, and 22-28 AWG (0.08 - 0.34 mm)

Features

Features

 N/A
  • "Fast, reliable crimp tool with steel body for durability with ergonomic comfort grips"
  • "Cuts, strips and crimps Twisted Pair, Ethernet, RJ45 voice and data cables"
  • "Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)"
  • Crimping dies are precision ground from high-carbon steel
  • Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
  • Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
  • "Yellow and black grips enhance comfort, visibility, and allow quick identification"
  • Not for use with AMP® connectors
  • Replacement blade set available (Cat. No. VDV999-064)
  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Never use on or near live electrical circuits.
