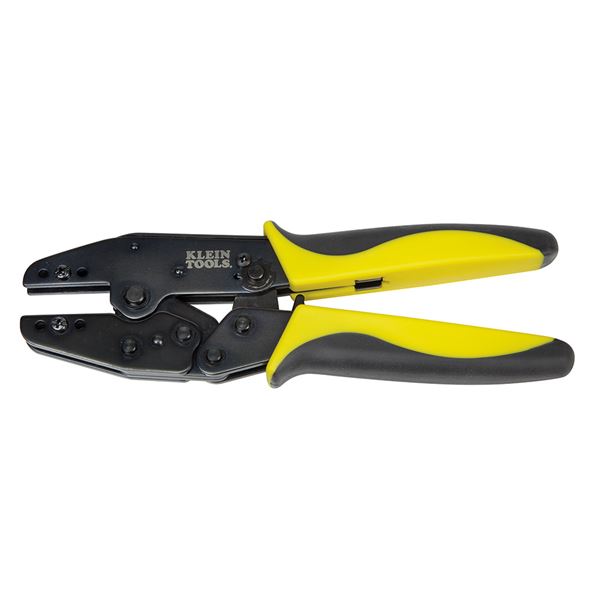

"Klein® Tool's professional CATV, Electrical, Home Theater, Satellite and Security System ratcheting crimper frame with optional dies is perfect for fast, reliable connector installations. Full-cycle ratchet action assures a complete, precise crimp every cycle. It has a preset tension for optimum performance."
Unit of Measure

Specifications

Brand

 N/A Klein®

Type

 N/A Ratcheting Crimper Frame

UPC Code

 N/A 92644580215

UNSPSC code

 N/A 43222814

Style

 N/A Full Compression

Material

 N/A Steel

Handle Type

 N/A Comfort Grip

Handle Color

 N/A Black/Yellow

Handle Finish

 N/A Black-Oxide

Insulated

 N/A No

Weight

 N/A 0.50 kg1.10 lb

Dimensions

Overall Length

 N/A 8-3/4 in222.3 mm

Features

Features

 N/A
  • Ratchet mechanism is designed to prevent the release of the connector prior to full compression.
  • Safety crimp release helps eliminate rejected terminations due to incorrect positioning.
  • Steel body with black-oxide finish for corrosion resistance and durability
  • "Yellow and black grips enhance comfort, visibility, and allow quick identification."
  • "Thumb-screws secure die-sets for quick, easy changes."
  • Optional replacement thumb and Phillips screw set (VDV999-033) also available.
  • VDV211-038 (RG 58/59/62);VDV205-039 (Pin Terminal Insulated or Non-Insulated Ferrule AW12-22); VDV201-040 (RG58/59/62/174 Fiber Optic); VDV211-041 (RG58/59/62/6); VDV201-042 (RG174/179/Belden 8218 and Fiber Optic); VDV211-043 (RG8/11/174/179/213);
  • VDV205-044 (Non-Insulated Terminal AWG8-18).
  • "Optional, quick interchangeable die sets available."
  • Optional die sets available: VDV212-034 (CATV F-Connector RG59/6); VDV205-035 (Insulated Terminal AWG10-22); VDV205-036 (Non-Insulated Terminal or Open Barrel Terminal AWG10-20); VDV211-037 (RG6/58/59/62);
  • Always wear approved eye protection.
  • NOT insulated. Will NOT protect against electrical shock.
  • Use caution when tightening thumb-screws to prevent thread damage/stripping and hand-tighten only; do not over-tighten the thumb-screws. Over-tightening thumb-screws can damage the tool and/or die set.
