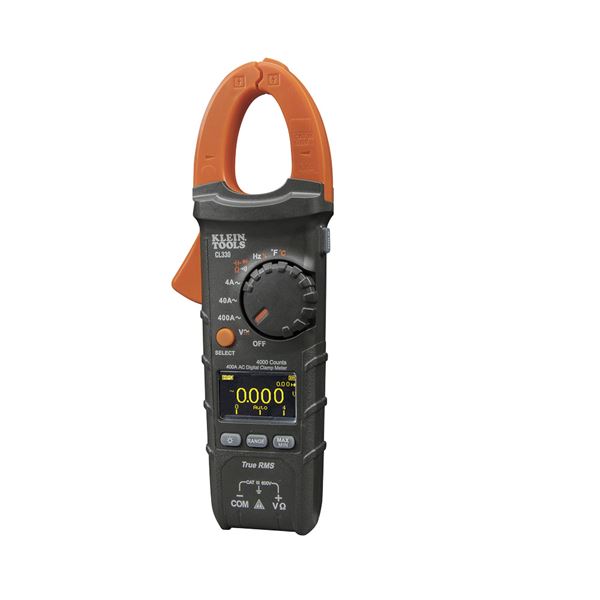

"Klein® Tools CL330 is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current via the clamp, AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It features a super bright high visibility dual-line OLED display screen that optimizes view ability in dark or bright environments and when viewed at angles far away from normal to the display."
Unit of Measure

Specifications

Brand

 N/A Klein®

Type

 N/A Digital Clamp Meter

UPC Code

 N/A 92644690396

UNSPSC code

 N/A 41113654

Display

 N/A Digital Light Emitting Diode (LED)

Power Supply

 N/A AAA

Batteries

 N/A 3

Includes

 N/A Pouch, 41 (1041.4 mm) Test Leads, Thermocouple, and Batteries

Functions

 N/A AC current, Alternating Current (AC)/Direct Current (DC) Voltage, Continuity, Resistance, Capacitance, Frequency, Diodes and Temperature

Frequency

 N/A 10Hz to 1 MHz

Drop Protection

 N/A 3.3 ft1 m

Standard

 N/A CATIII 600 V, Class 2, Double Insulation

Weight

 N/A 0.41 kg0.90 lb

Dimensions

Jaw Size

 N/A 1-1/8 in28.6 mm

Overall Length

 N/A 1-39/64 in40.9 mm

Overall Width

 N/A 3-1/32 in77 mm

Overall Height

 N/A 8-21/32 in219.9 mm

Application

Application

 N/A Voltage Tester

Features

Features

 N/A

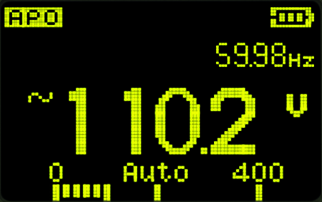

  • "Features best-in-class high-visibility dual-line OLED display screen, which presents information in reverse contrast to standard meters."

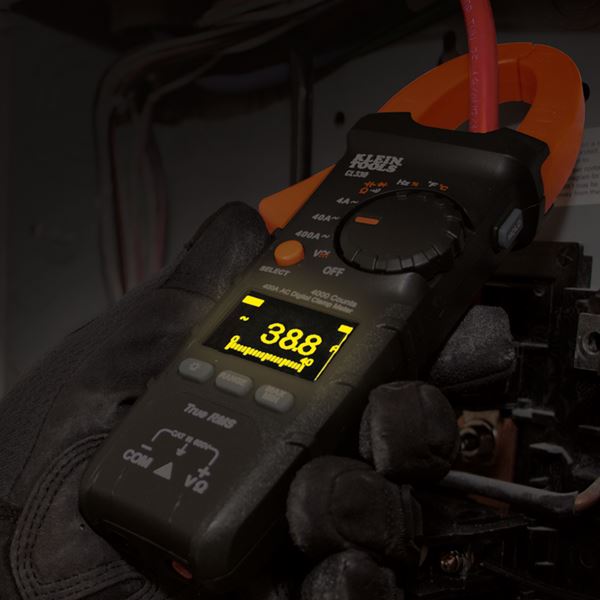

  • "High-visibility in reduced ambient lighting, as well as bright outdoor environments, and at acute angles to display."
  • True RMS measurement technology.
  • Dual-mode display can present simultaneous measurements.
  • Bar graph emulates performance of an analog meter for visualizing fast moving events.
  • Rugged Klein® 'tough meter' industrial design stands up to jobsite demands.

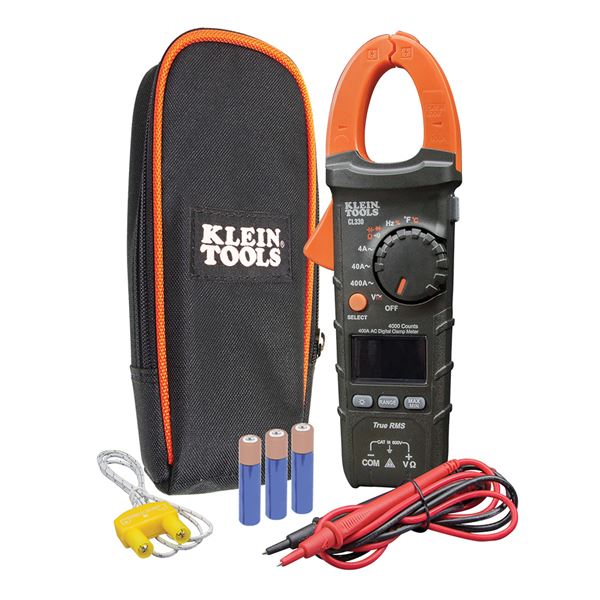

  • "Includes test leads, K-type thermocouple, 3 x AAA batteries and a protective carrying case."
  • CAT III 600 V safety rating.
  • Do not attempt to measure resistance or continuity on live circuits.

Note

Note

 N/A Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
