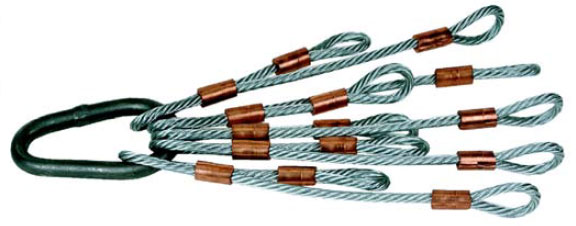

10 Way 3/8" (6 mm) Cable
Unit of Measure
Specifications
Working Load per Leg (lb.) |
N/A 4800 |
Working Load Per Leg (N) |
N/A 21351 |
Working Load Combined (lb.) |
N/A 6000 |
Working Load Combined (N) |
N/A 26689 |
Max. Width A (in.) |
N/A 4.50 |
Max. Width A (mm) |
N/A 114 |
Separation Between Legs B (in.) |
N/A 6 |
Separation Between Legs B (mm) |
N/A 152 |
Lead Ring Diameter C (in.) |
N/A 0.75 |
Lead Ring Diameter C (mm) |
N/A 19 |
Leg Diameter D (in.) |
N/A 0.38 |
Leg Diameter D (mm) |
N/A 10 |
Note |
N/A 10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered. |
