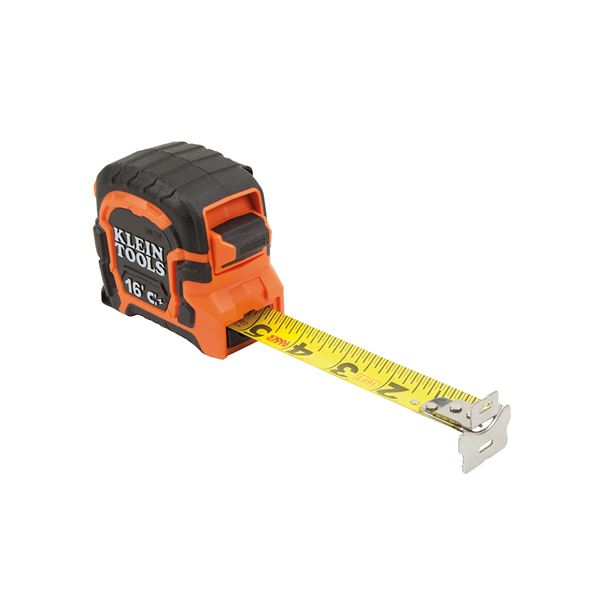

"Klein® Tools Tape Measures offer inventive first-rate features derived from jobsite professionals, to make jobs easier and more efficient. A magnetic double hook has a center top portion for hanging onto conduit right side up and upside down, while a 1-1/4 inch flared hook was designed specifically to pass-through 1-3/8 inch holes drilled for 1 inch conduit. This large magnet profile attaches to steel and along EMT conduit. A sealed tape brake panel is large enough to allow 2-3 fingers tomore
Unit of Measure

Specifications

Brand

Klein®

Type

Double Sided Closed Case

UPC Code

92644862168

UNSPSC code

27111801

Tape Coating

Nylon

Rewind Type

Automatic

Tape Material

Steel

Hook Type

Double

Measurement Standard

SAE

Case Material

Acrylonitrile Butadiene Styrene (ABS)

Magnetic

Yes

Belt Clip

Yes

Case Color

Orange

Lockable Tape

Yes

Graduations

1/16 in

Stand-Out

Up to 9-1/2 ft

Weight

0.37 kg0.81 lb

Dimensions

Overall Length

3-1/4 in82.6 mm

Overall Width

2 in50.8 mm

Tape Length

16 ft4.9 m

Overall Height

3-3/64 in77.4 mm

Features

Features

  • "Uncluttered, easy-to-read bold lines marked on blade every 1/8 inch."

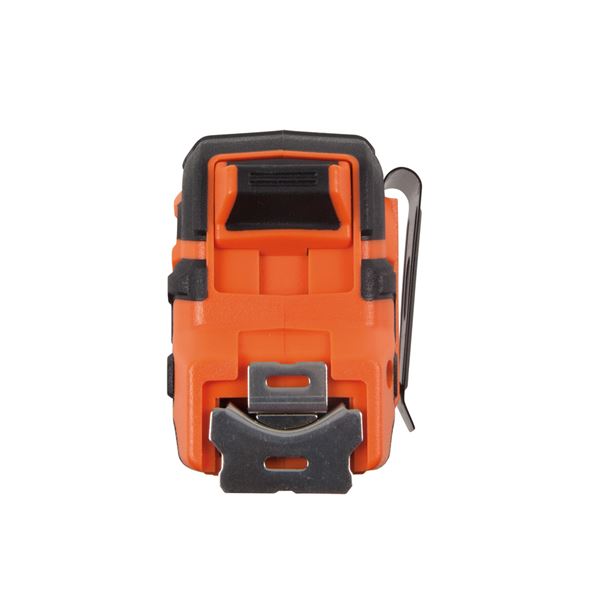

  • Dual angle magnetic hooks attach to conduit and steel studs.
  • Heavy-duty nylon-coating protects blade printing.
  • Retraction speed brake controls blade speed and protects fingers from touching blade.

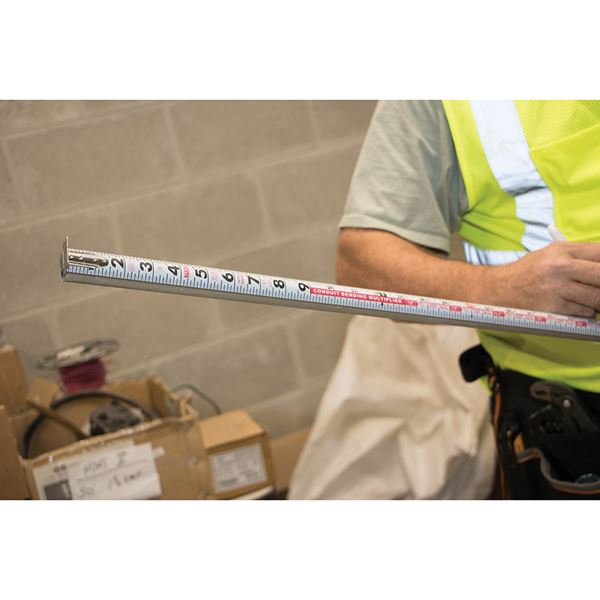

  • Blade printed Conduit Bending Table helps calculate offsets and saddles.

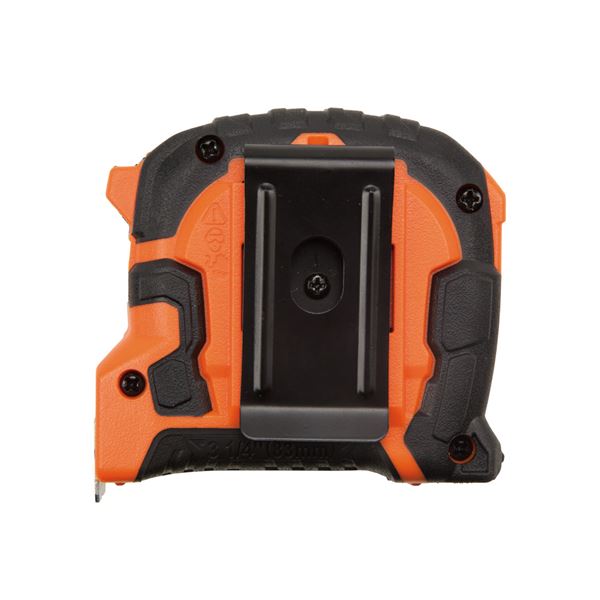

  • Super-sized back clip holds securely to wide belts and extends deep into pockets.
  • U.S. Patent Pending.
  • Always wear eye protection.
  • Do NOT open case. Spring motor is under tension and opening may cause injury.
  • Not insulated. Do NOT use on live circuits. Avoid magnetic contact with sensitive electronic or computer equipment.
