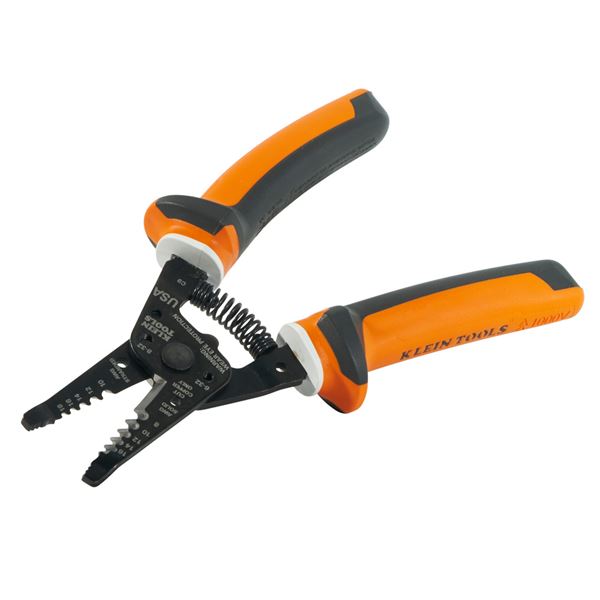

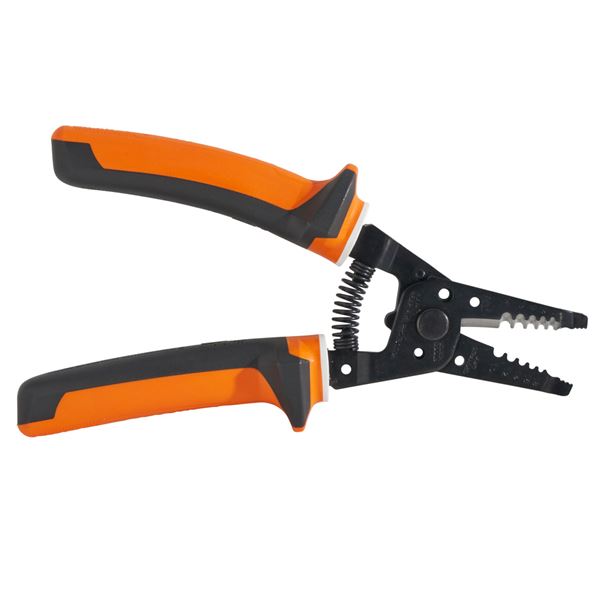

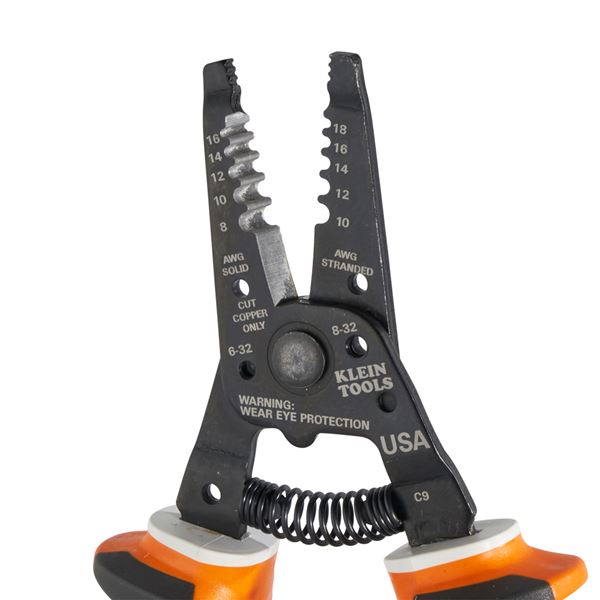

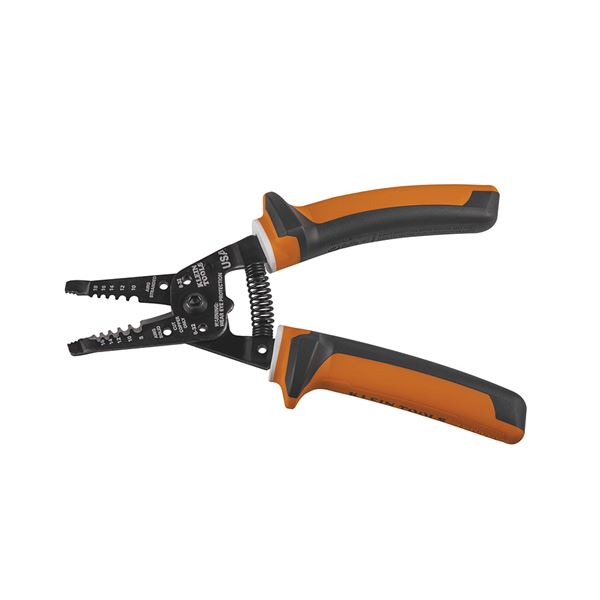

"Klein® Tools Electrician's Insulated Solid and Stranded Stripper is 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumbguards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools."
Unit of Measure

Specifications

Brand

 N/A Klein®

Type

 N/A Insulated Wire Stripper with Cutter

UPC Code

 N/A 92644740107

UNSPSC code

 N/A 27112135

Style

 N/A Insulated

Material

 N/A Steel

Handle Color

 N/A Orange/Gray

Handle Finish

 N/A 3-Layer

Strips and Cuts (Solid)

 N/A 8 - 16 AWG8.4 - 1.3 mm²

Strips and Cuts (Stranded)

 N/A 10 - 18 AWG5.3 - 0.82 mm²

Screw Shearing

 N/A 6-32 and 8-32

Rated Voltage

 N/A 1000 V

Weight

 N/A 0.23 kg0.51 lb

Industry Standards/Certifications

 N/A International Electrotechnical Commission (IEC) 60900 and American Society for Testing Materials (ASTM) F1505, VDE Certified

Dimensions

Overall Length

 N/A 8 in203.2 mm

Application

Application

 N/A 8-16 AWG Solid and 10-18 AWG Stranded Copper Wire and Shearing 6-32 and 8-32 Screws

Features

Features

 N/A
  • 1000 V Rated for safety on the job. VDE Certified
  • "Cuts, strips, loops and gauges both solid and stranded wire"
  • "Spring loaded for self-opening. Serrated nose for easy bending, shaping and pulling of wire"
  • Cleanly shears 6-32 and 8-32 screws. Do not use for cutting steel wire
  • Unique three-part insulation with white underlayer provides a warning sign that insulation may be compromised
  • "Multi-color, sleek design with small thumbguards for ease of handling and easy storage in your toolbelt"
  • "Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools"
  • "Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein® insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source."
  • "Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.".
  • Always inspect your tools before use.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • "Keep tool clean, dry and free of any surface contaminants."
  • Destroy tool if the insulation is damaged in any way.
  • "Compact and Lightweight, Spring Loaded For Self Opening"
