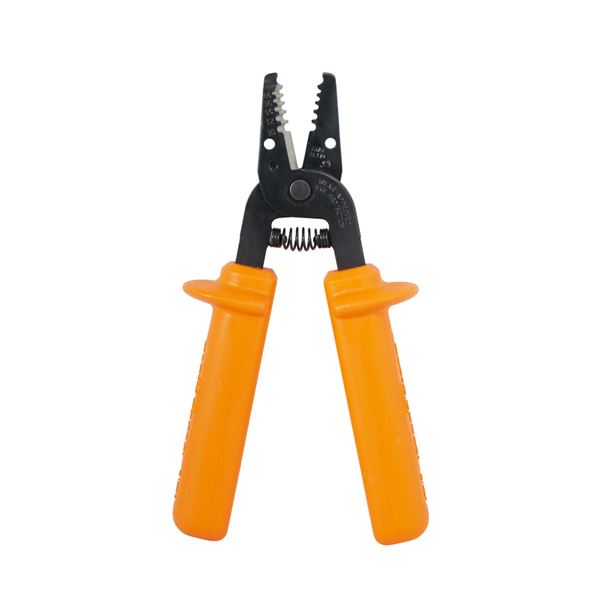

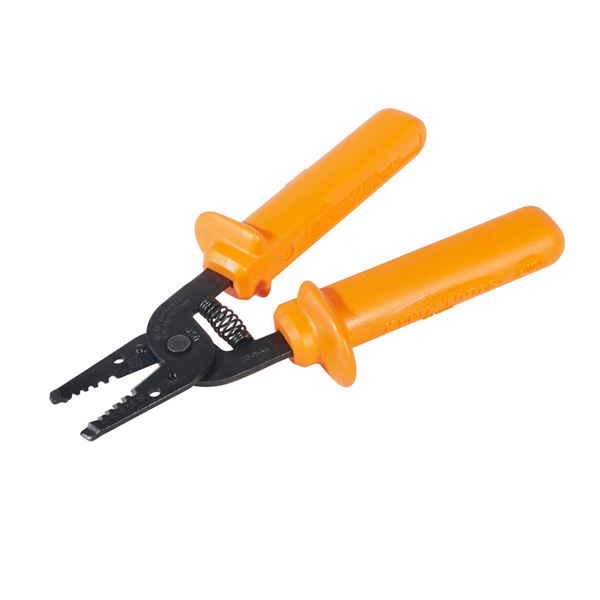

"This compact, lightweight wire-stripping, cutting tool cuts, strips, loops and gauges 10-18 AWG solid wire. Dual layer orange-over-white insulation protects against electric shock. Exceeds IEC 60900 and ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-volt rating symbol. Hardened spring steel with precision-ground stripping holes for easy removal of insulation."
Unit of Measure

Specifications

Brand

 N/A Klein®

Type

 N/A Insulated Wire Stripper with Cutter

UPC Code

 N/A 92644740497

UNSPSC code

 N/A 27111510

Style

 N/A Insulated

Material

 N/A Steel

Handle Color

 N/A Orange

Handle Finish

 N/A 2-Layer

Strips and Cuts (Solid)

 N/A 10, 12, 14, 16, 18 AWG4.0, 2.5, 1.5, 1.0, 0.75 mm²

Weight

 N/A 0.27 kg0.60 lb

Industry Standards/Certifications

 N/A International Electrotechnical Commission (IEC) 60900 and American Society for Testing Materials (ASTM) F1505

Dimensions

Overall Length

 N/A 7 in178 mm

Application

Application

 N/A Cuts, Strips, Loops and Gauges 10-18 Solid Wire

Features

Features

 N/A
  • Individually dielectrically tested
  • "Gauges, cuts, strips and loops wire"
  • Spring-loaded for self-opening
  • "Compact, lightweight wire-stripping, cutting tool"
  • Narrow nose fits into tight places

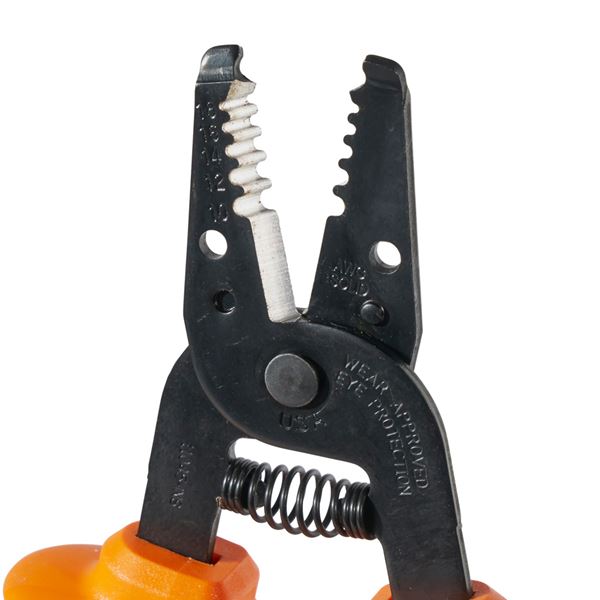

  • Hardened spring steel with precision-ground stripping holes for easy removal of insulation
  • "Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source."
  • "Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein® insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source."
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • "Because moisture, films, or other surface contaminants are conductive, Klein® insulated tools must be kept clean, dry, and free of any surface contaminants."
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • "Compact and Lightweight, Spring Loaded For Self Opening"
