Unit of Measure

Specifications

Brand

 N/A Klein®

Type

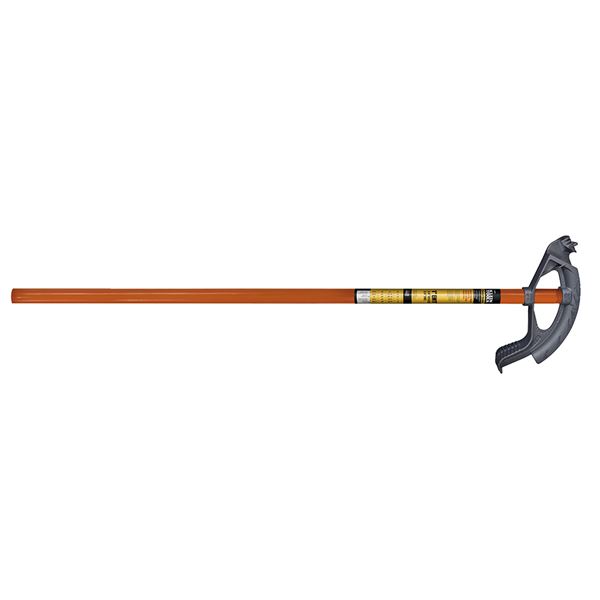

 N/A Benfield Head Iron Conduit Bender

UPC Code

 N/A 92644562044

UNSPSC code

 N/A 27112503

Style

 N/A Iron, Benfield Head

Material

 N/A Steel, Iron

Centerline Bend Radius

 N/A 5 in127.0 mm

Conduit Type

 N/A Rigid, Intermediate Metal Conduit (IMC), Thinwall, Electrical Metallic Tubing (EMT)

Includes

 N/A Handle 51427

Marking

 N/A Degree Scales, Multiplier Scales, Center Bend Marks

Rigid/Intermediate Metal Conduit (IMC)

 N/A 1/2 in12.7 mm

Thinwall/Electrical Metallic Tubing (EMT)

 N/A 3/4 in19.1 mm

Weight

 N/A 3.0 kg6.6 lb

Dimensions

Handle Length

 N/A 38 in965.2 mm

Overall Length

 N/A 36.45 in925.8 mm

Overall Width

 N/A 9 in228.6 mm

Overall Height

 N/A 2.52 in64 mm

Application

Application

 N/A "Stub Ups, Offsets, Back-to-Back, Saddle Bends and Other Bends"

Features

Features

 N/A
  • Exclusive design reduces rippling and ovaling of conduit
  • "Traditional Benfield head design accurately and consistently performs common bends such as Stub Ups, Offsets, Back-to-Back and Saddle Bends"
  • "Bold cast-in symbols, degree scales, multiplier scales and center of bend marks help save time on the job"
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Interior clamp securely holds conduit while cutting with hacksaw
  • "Wide foot pedal provides excellent stability, leverage and comfort"
  • Features angled grooves for extra traction
  • Easily visible arrow for ease of alignment on conduit marks
  • High-strength steel handle features a swaged end for inserting conduit to correct overbends
  • Orange handle is easy to spot on the job site
  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.
  • "Wide Foot Pedal for Stability, Leverage and Comfort"
