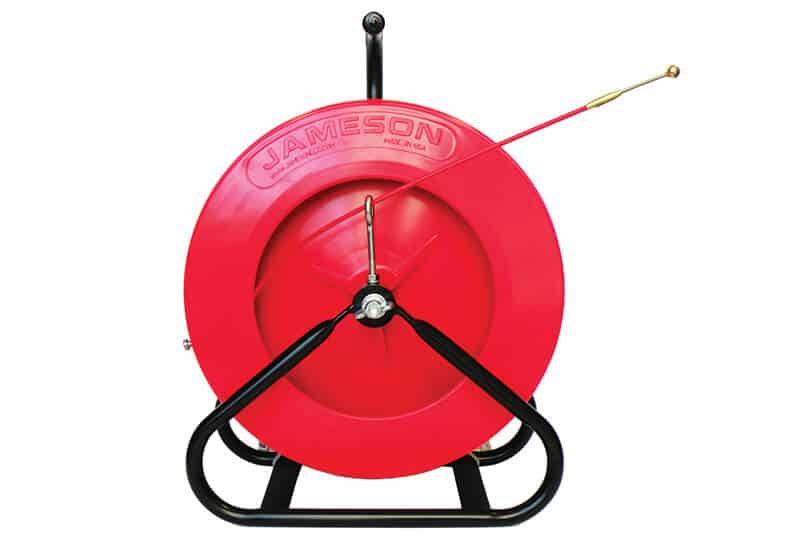

The Mini Duct Hunter is a traceable duct rodder that offers a non-invasive solution for locating and mapping underground ducts and pipes measuring between 1/2 and 1-1/2 inch in diameter. The detectable fiberglass rod incorporates a 22 AWG copper trace wire that can be located at depths up to 10 feet. Accessory kit is included.
Save time by eliminating digging and trenching. When used with a signal transmitter to energize the wire, an electromagnetic signal is then detected via hand-held receiver to trace the entire line. The Mini Duct Hunter comes standard with a male end ferrule, pulling eye and accessory kit conveniently attached to the frame.
Save time by eliminating digging and trenching. When used with a signal transmitter to energize the wire, an electromagnetic signal is then detected via hand-held receiver to trace the entire line. The Mini Duct Hunter comes standard with a male end ferrule, pulling eye and accessory kit conveniently attached to the frame.
Unit of Measure
Specifications
UPC Code |
N/A 815963013963 |
Type |
N/A Duct Hunter Traceable Rodder |
Style |
N/A Non-Conductive |
Weight |
N/A 12.6 lb |
Material |
N/A Fiberglass |
Harmonization Code |
N/A 7019.90.5050 |
Manufacturer Country |
N/A US |
Container Type |
N/A Frame |
