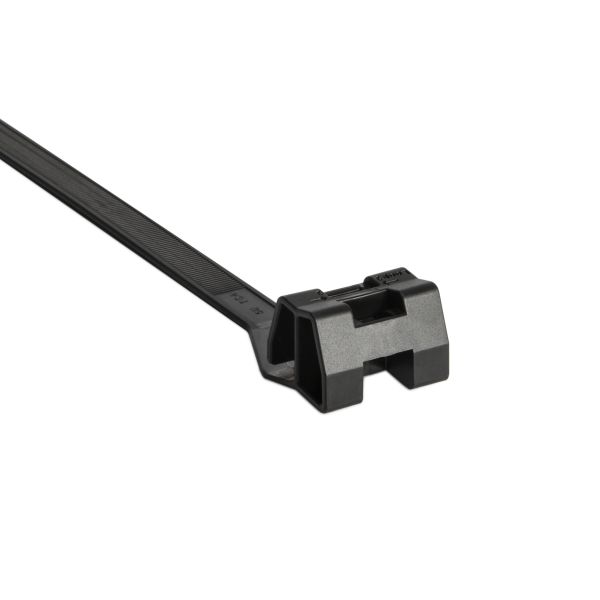

Aerial Support Ties feature a built-in spacer to separate cables from the support wire and prevent abrasion. A one-piece design, combining the tie and spacer into one part, reduces installation time and inventory costs. The outside serrations along the strap prevent damage to cables. Formulated from a special nylon blend, these ties are specifically suited for long-term outdoor use. The bent tail allows for quick and simple installation by hand.
Unit of Measure

Specifications

Brand

 N/A HELLERMANN TYTON

Type

 N/A Aerial Support Tie

UNSPSC code

 N/A 39121703

Series

 N/A TAS120M

Material

 N/A Polyamide 6.6 high Impact Modified, Heat and UV Stabilized (PA66HIRHSUV)

Color

 N/A Black (BK)

Local Order Number

 N/A 111-01671

UL Listed (US)

 N/A No

UL Listed (US and Canada)

 N/A No

UL Recognized (US)

 N/A No

UL Recognized (US and Canada)

 N/A No

ROHS Compliant

 N/A Yes

Flammability

 N/A UL 94 HB

Variant

 N/A Outside Serrated

Tensile Strength [Min]

 N/A 120 lb535 N

Operating Temperature [Min]

 N/A -40 ºC-40 ºF

Operating Temperature [Max]

 N/A 110 ºC230 ºF

Dimensional Attributes

Length

 N/A 12.4 in270.0 mm

Width

 N/A 1/2 in12.7 mm

Bundle Diameter [Max]

 N/A 2.7 in70.0 mm

Height

 N/A 0.76 in19.0 mm

Features

Features

 N/A
  • Aerial Support Tie, 12.4", PA66HIRHSUV, Black, 500/bag.
  • UV resistant materials contain an inhibitor which prolongs the life of the tie in outdoor environments.
  • One-piece design reduces installation time.
  • Outside serrations prevent cable damage.
